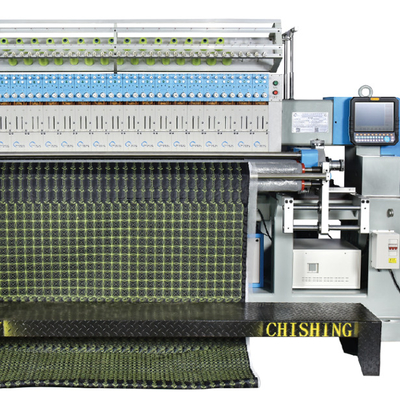

Trending hot products Textiles embroidery quilting sewing machine products made in china
Model | Heads Number | Needle distance | Needle Distance | Weight | Embroidery width | Fabric width | Dimension L*W*H
| ||
CSHX219 | 19 | 50.8 mm | 2 | 2870 kg | 1900 mm | 1900 mm | 3800 mm | 1700 mm | 2000 mm |
Rotating Speed | Needle number | thickness | Rated power | output | Voltage | Carriage stroke | Stitch length | Rotating hook type | Row of needles |
200-800rpm | #12-16 | ≤400g | 5.5kw | 2-140m/h | 380v 3 phrase | 12inch | 2-12mm | KHS20-R | Single |
Features:
1. The simultaneous performance of quilting and embroidering.
2. High speed 800 RPM
3. High capacity : KHS20-R rotating hook :120M yarn
4. Able to process different materials .For instance PU leather,Cotton fabric, knitting fabric and foam etc.
5. Three axes x y z are controlled by Panasonic server motors separately
6. Top and bottom thread break detections
7. Automatic memory for the current position in case of power off.
8. The pattern-design system is acceptable to read common embroidering machine design format. USB flash
memory is used for storing patterns
9. The fabric-out use the three axes for adjustment it ensure the quilting effect.
10. Effective clutch is matched well with the ROLLER structure at the front and the rear, to prevent any slipping of the
fabric material
11. The needle rack is free of lubrication
12. The bottom thread can be used up, without waste
The advantages of the quilting and embroidery machine
1 As the quilting embroidery machine use rotating hook(like sewing machine ) and independent needle and presser foot, stitch very smooth, clear, beautiful, especially for high-quality fabric quilting and embroidering .
(2) Quilting and embroidery machine has the quilting and embroidery function.For instance logo or letters and embroidery flowers can be stitched also.
(3) The assembling standards and movements of needle, hook and rotating-spindle are in full compliance with Industrial sewing machine manual. Sewing action reliable, less stitch skip and low thread breaking rate and needle breakage rate
4) No plate and Shuttle, minimal operating noise
5) For garment industry, if the width requirement is less than 1.6 meters, it can process two sheets of materials at the
same time, which can greatly improve the output and efficiency.
Dongguan Chishing Machinery Co., Ltd. was established in 1989 and has immediately secured a leading position in mainland Chinese quilting industry as one of the first manufacturers to produce multi-needle quilting machines.
At present, we are a professional manufacturer and developer of multi-needle quilting machines of various specifications. Since our foundation, our work space has increased to over 12,000 square meters, with our production capacity having been quadrupled. Our products include mechanical and digital control multi-needle machines of both shuttle and non-shuttle varieties. In order to satisfy the diverse requirements of our unique customers, our technicians continue to work hard in developing a new series of multifunctional quilting equipment.
Our products are sold worldwide and our sales currently account for 70% of the total Chinese quilting machine market. We maintain sales offices throughout China, as well as overseas offices in Canada, Pakistan, and Singapore. With an excellent reputation in the industry, outstanding after-sales service, and superior quality, we benefit both trust and appreciation from our customers and fulfill our goal of "reputation first, service first, and quality first".
We look forward to hearing from you in the near future.
With over 25 years' development, CHISHING has become a trustworthy textile equipment supplier which is specialized In R&D and manufacture of multi-functional sewing machine, Industrial embroidery machine, computerized quitting machine and other sewing accessories. We have gained several official and industrial recognitions which mainly include:
